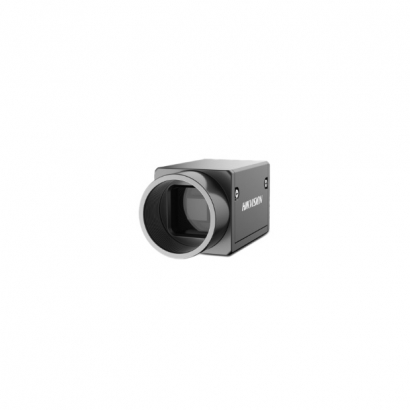

海康CE系列USB3.0相機

海康CE系列USB3.0相機

解析度覆蓋廣 高像素相機,具備小體積
CE系列相機的解析度覆蓋30萬到2000萬像素,部分型號的相機
詳細介紹
產品規格: Product specification:
◆USB3.0相機
◆自動曝光控制、用戶自定義查找表     LUT、Gamma校正
◆相容USB3.0 Vision 1.0協議
CE系列USB3.0相機
Camera Model List Resolution Pixel Size Frame Rate Sensor Shutter Mode JPG PDF 3D
Camera Model List:MV-CE013-50UM Resolution:1.3MP 1280×960 Pixel Size:3.75μm Frame Rate:30fps Mono8 Sensor:Sharp RJ33
1/3” CCD
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE013-50UC Resolution:1.3MP 1280×960 Pixel Size:3.75μm Frame Rate:30fps Mono8
15fps YUV
30fps Bayer8
Sensor:Sharp RJ33
1/3” CCD
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE013-80UM Resolution:1.3MP 1280×1024 Pixel Size:4.0μm Frame Rate:150fps Mono8 Sensor:SS
1/2.7” CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE050-30UM Resolution:5MP 2592×1944 Pixel Size:2.2μm Frame Rate:44.7fps Mono8 Sensor:AR0521
1/2.5” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE050-30UC Resolution:5MP 2592×1944 Pixel Size:2.2μm Frame Rate:44.7fps Mono8
44.7fps Bayer8
Sensor:AR0521
1/2.5” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE060-10UM Resolution:10MP 3072×2048 Pixel Size:2.4μm Frame Rate:42.7fps Mono8 Sensor:SONY IMX178
1/1.8” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE060-10UC Resolution:10MP 3072×2048 Pixel Size:2.4μm Frame Rate:42.7fps Mono8
42.7fps Bayer8
Sensor:Sony IMX178
1/1.8” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE120-10UM Resolution:12MP 4000×3036 Pixel Size:1.85μm Frame Rate:31.9fps Mono8 Sensor:Sony IMX226
1/1.7” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE120-10UC Resolution:12MP 4000×3036 Pixel Size:1.85μm Frame Rate:31.9fps Mono8
31.9fps Bayer8
Sensor:Sony IMX226
1/1.7” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE200-10UM Resolution:20MP 5472×3648 Pixel Size:2.4μm Frame Rate:19.2fps Mono8 Sensor:Sony IMX183
1” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE200-10UC Resolution:20MP 5472×3648 Pixel Size:2.4μm Frame Rate:19.2fps Mono8
19.2fps Bayer8
Sensor:Sony IMX183
1” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE200-11UM Resolution:20MP 5472×3648 Pixel Size:2.4μm Frame Rate:19.2fps Mono8 Sensor:Sony IMX183
1” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CE200-11UC Resolution:20MP 5472×3648 Pixel Size:2.4μm Frame Rate:19.2fps Mono8
19.2fps Bayer8
Sensor:Sony IMX183
1” CMOS
Shutter Mode:Rolling Shutter JPG:JPG PDFPDF 3D:3D
