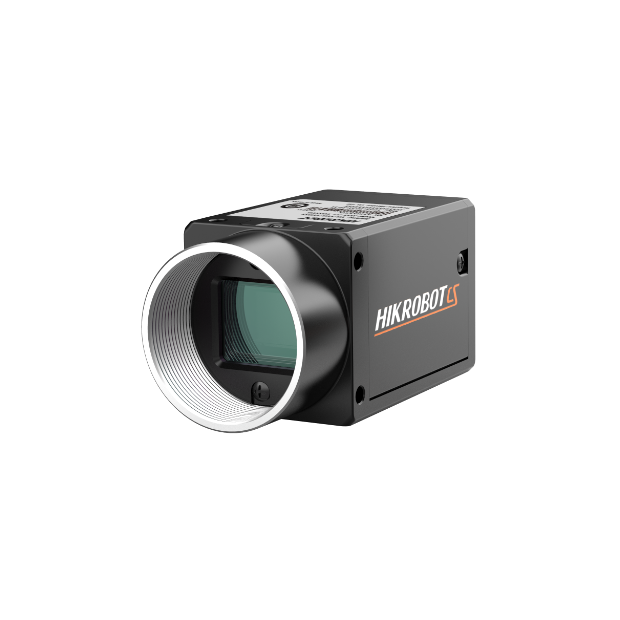

海康CS系列USB 3.0相機

海康CS系列USB 3.0相機

CS系列全新二代工業相機,搭載優異的圖像感測器
動態範圍高,信噪比好,圖像品質優異,具備出色的功耗設計
相容機器視覺標準協議和GenlCam標準,無縫銜接第三方軟體。
詳細介紹
產品規格:
Product specification:
◆GIGE相機
◆1Gbps傳輪速度,傳輸距離可到100m
◆自動曝光控制、用戶自定義查找表      LUT、Gamma校正
◆相容GigE Vision協議V1.2

> >
CS系列USB 3.0相機
Camera Model List Resolution Pixel Size Frame Rate Sensor Shutter Mode JPG PDF 3D
Camera Model List:MV-CS004-10UM Resolution:0.4MP  720×540 Pixel Size:6.9μm Frame Rate:526.5fps Mono8 Sensor: IMX287
1/2.9” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS004-10UC Resolution:0.4MP  720×540 Pixel Size:6.9μm Frame Rate:526.5fps Bayer BG 8 Sensor: IMX287
1/2.9” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS016-10UM Resolution:1.6MP  1440×1080 Pixel Size:3.45μm Frame Rate:249.1fps Mono8 Sensor: IMX273
1/2.9” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS016-10UC Resolution:1.6MP  1440×1080 Pixel Size:3.45μm Frame Rate:249.1fps Bayer BG 8 Sensor: IMX273
1/2.9” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS020-10UM Resolution:2MP  1624×1240 Pixel Size:4.5μm Frame Rate:90fps Mono8 Sensor: IMX430
1/1.7” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS020-10UC Resolution:2MP  1624×1240 Pixel Size:4.5μm Frame Rate:90fps Bayer RG 8 Sensor: IMX430
1/1.7” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS028-10UM Resolution:2.8MP  1936×1464 Pixel Size:4.5μm Frame Rate:132.2fps Mono8 Sensor: IMX421
2/3” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS040-A0UM Resolution:4MP  2048×2048 Pixel Size:5.5μm Frame Rate:90.1fps Mono8 Sensor:
1” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS040-A0UC Resolution:4MP  2048×2048 Pixel Size:5.5μm Frame Rate:90.1fps Bayer GB 8 Sensor:
1” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS050-10UM Resolution:5MP  2448×2048 Pixel Size:3.45μm Frame Rate:60fps Mono8 Sensor: IMX264
2/3” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS050-10UC Resolution:5MP  2448×2048 Pixel Size:3.45μm Frame Rate:60fps Bayer RG 8 Sensor: IMX264
2/3” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS050-60UM Resolution:5MP  2448×2048 Pixel Size:3.45μm Frame Rate:60fps Mono8 Sensor: 堆栈式BSI
2/3” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS050-60UC Resolution:5MP  2448×2048 Pixel Size:3.45μm Frame Rate:60fps Bayer GR 8 Sensor: 堆栈式BSI
2/3” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS060-10UM-PRO Resolution:6MP  3072×2048 Pixel Size:2.4μm Frame Rate:59.6fps Mono8 Sensor: IMX178
1/1.8” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS060-10UC-PRO Resolution:6MP  3072×2048 Pixel Size:2.4μm Frame Rate:59.6fps Bayer RG 8 Sensor: IMX178
1/1.8” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS200-10UM Resolution:20MP  5472×3648 Pixel Size:2.4μm Frame Rate:19.2fps Mono8 Sensor: IMX183
1” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CS200-10UC Resolution:20MP  5472×3648 Pixel Size:2.4μm Frame Rate:19.2fps Bayer RB 8 Sensor: IMX183
1” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
