海康相機

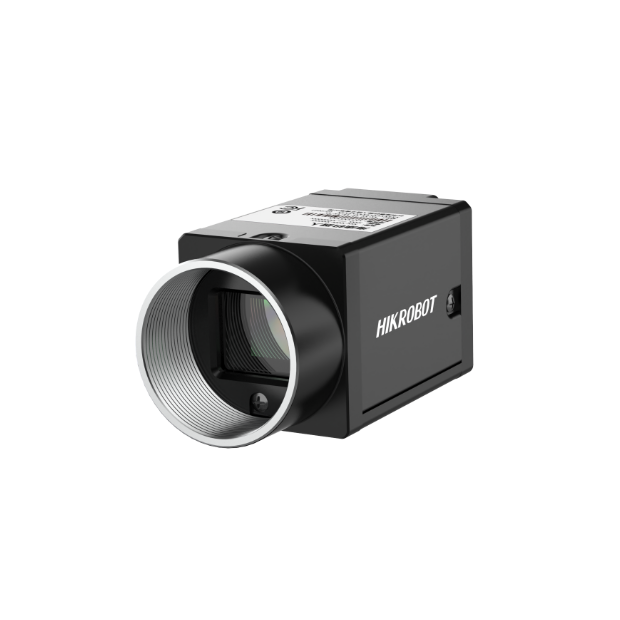

海康CU系列USB 3.0相機

海康CU系列USB 3.0相機

CU系列選用低功耗平臺,性能穩定
打造同時滿足穩定和必要功能的普惠型工業相機產品
助力用戶更簡單獲取視覺應用。
植入寬動態,降噪,銳化等ISP演算法
可靈活根據用戶實際場景進行調節
最大程度降低外界干擾,穩定成像,減負後端演算法。
詳細介紹
產品規格:
Product specification:
◆GIGE相機
◆1Gbps傳輪速度,傳輸距離可到100m
◆自動曝光控制、用戶自定義查找表      LUT、Gamma校正
◆相容GigE Vision協議V1.2

> >
CU系列USB 3.0相機
Camera Model List Resolution Pixel Size Frame Rate Sensor Shutter Mode JPG PDF 3D
Camera Model List:MV-CU013-80UM Resolution:1.3MP  1280×1024 Pixel Size:4μm Frame Rate:240.4fps Mono8 Sensor: SS
1/2.7” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU013-80UC Resolution:1.3MP  1280×1024 Pixel Size:4μm Frame Rate:240.4fps Bayer BG 8 Sensor: SS
1/2.7” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU013-A0UM Resolution:1.3MP  1280×1024 Pixel Size:4.8μm Frame Rate:201.4fps Mono8 Sensor:
1/2” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU013-A0UC Resolution:1.3MP  1280×1024 Pixel Size:4.8μm Frame Rate:201.4fps Bayer BG 8 Sensor:
1/2” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU050-60UM Resolution:5MP  2592×1944 Pixel Size:2.2μm Frame Rate:48.2fps Mono8 Sensor:
1/2.5” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU050-90UM Resolution:5MP  2600×2160 Pixel Size:2.5μm Frame Rate:59.8fps Mono8 Sensor: GMAX2505
1/2” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU050-90UC Resolution:5MP  2600×2160 Pixel Size:2.5μm Frame Rate:59.8fps Bayer BG 8 Sensor: GMAX2505
1/2” CMOS
Shutter Mode:Global Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU060-10UM Resolution:6MP  3072×2048 Pixel Size:2.4μm Frame Rate:59.6fps Mono8 Sensor: IMX178
1/1.8” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
Camera Model List:MV-CU060-10UC Resolution:6MP  3072×2048 Pixel Size:2.4μm Frame Rate:59.6fps Bayer BG 8 Sensor: IMX178
1/1.8” CMOS
Shutter Mode:Roling Shutter JPG:JPG PDF:PDF 3D:3D
