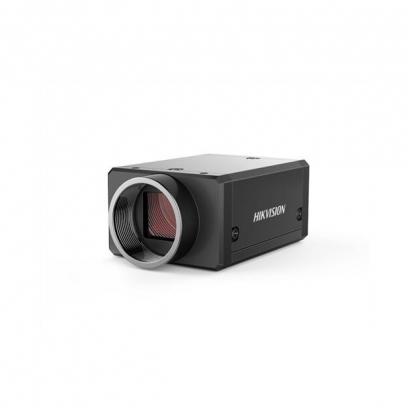

CH系列GIGE/ USB3.0相機

CH系列GIGE/ USB3.0相機

CH系列為高端型系列產品,針對高分辨率、高幀率需求。產品GigE、USB 3.0接口
詳細介紹
產品規格: Product specification:
◆高像素GIGE USB3.0相機
◆自動曝光控制、用戶自定義查找表      LUT、Gamma校正
◆相容GigE Vision 協議V1.2
◆相容USB3.0 Vision 1.0協議

CH系列GIGE相機
Camera Model List Resolution Pixel Size Frame Rate Sensor Shutter Mode JPG PDF 3D
Camera Model List:MV-CH089-10GM Resolution:8.9MP 4096×2160 Pixel Size:3.45μm Frame Rate:13fps Mono8 Sensor:IMX267
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH089-10GC Resolution:8.9MP 4096×2160 Pixel Size:3.45μm Frame Rate:13fps Bayer8 Sensor:IMX267
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D

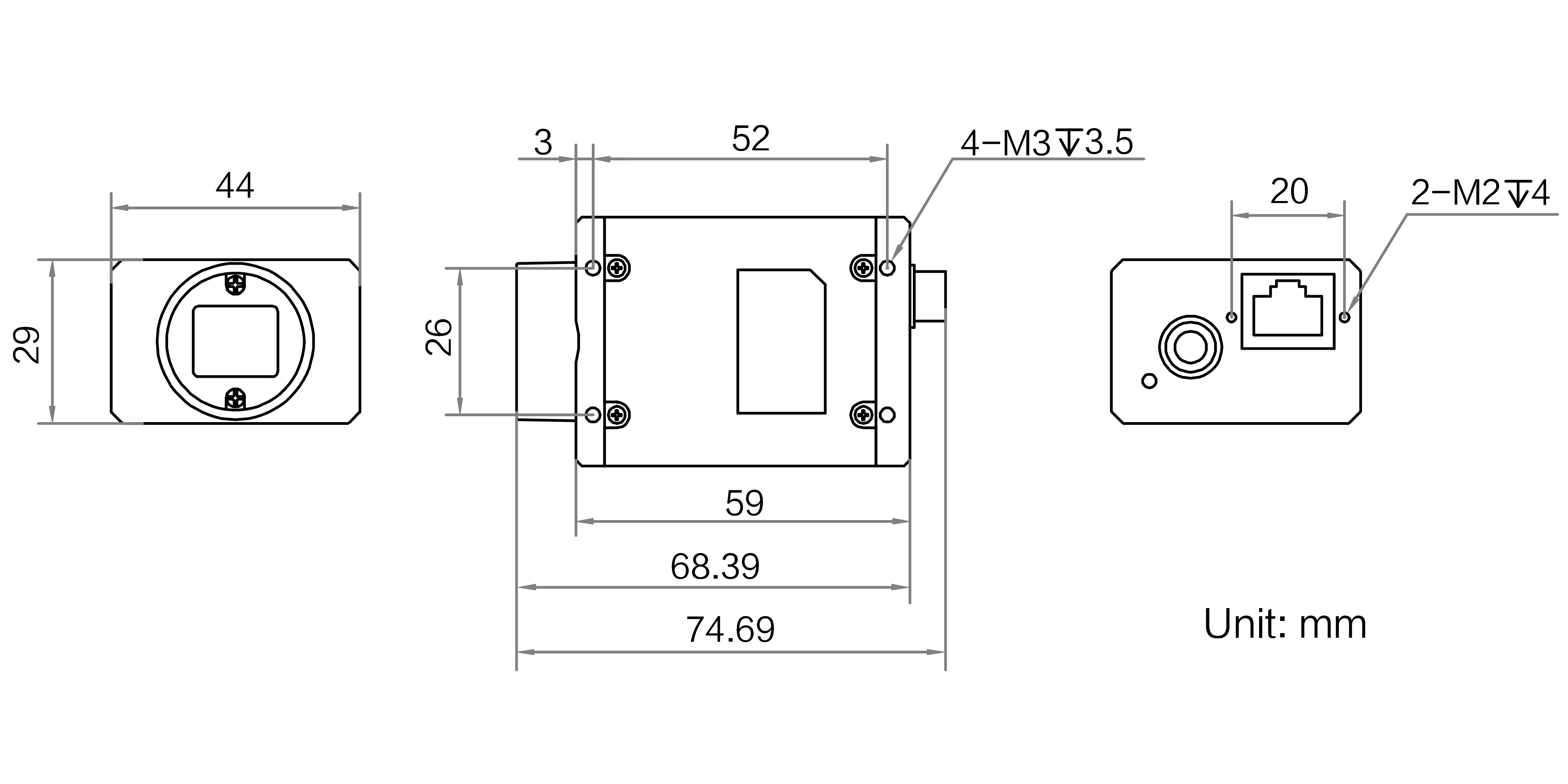

Camera Model List:MV-CH100-60GM Resolution:10MP 4096×2460 Pixel Size:3.45μm Frame Rate:11.6fps Mono8 Sensor:堆栈式BSI
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH100-60GC Resolution:10MP 4096×2460 Pixel Size:3.45μm Frame Rate:11.6fps Mono8 Sensor:堆栈式BSI
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-10GM Resolution:12MP 4096×3000 Pixel Size:3.45μm Frame Rate:9.4fps Mono8 Sensor:IMX304
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-10GC Resolution:12MP 4096×3000 Pixel Size:3.45μm Frame Rate:9.4fps Bayer8 Sensor:IMX304
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-20GM Resolution:12MP 4096×3072 Pixel Size:3.2μm Frame Rate:9.6fps Mono8 Sensor:XGS12000
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-20GC Resolution:12MP 4096×3072 Pixel Size:3.2μm Frame Rate:9.6fps Bayer8 Sensor:XGS12000
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH140-60GM Resolution:14MP 4708×2824 Pixel Size:3μm Frame Rate:9fps Mono8 Sensor:堆栈式BSI
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH140-60GC Resolution:14MP 4708×2824 Pixel Size:3μm Frame Rate:9fps Bayer8 Sensor:堆栈式BSI
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D

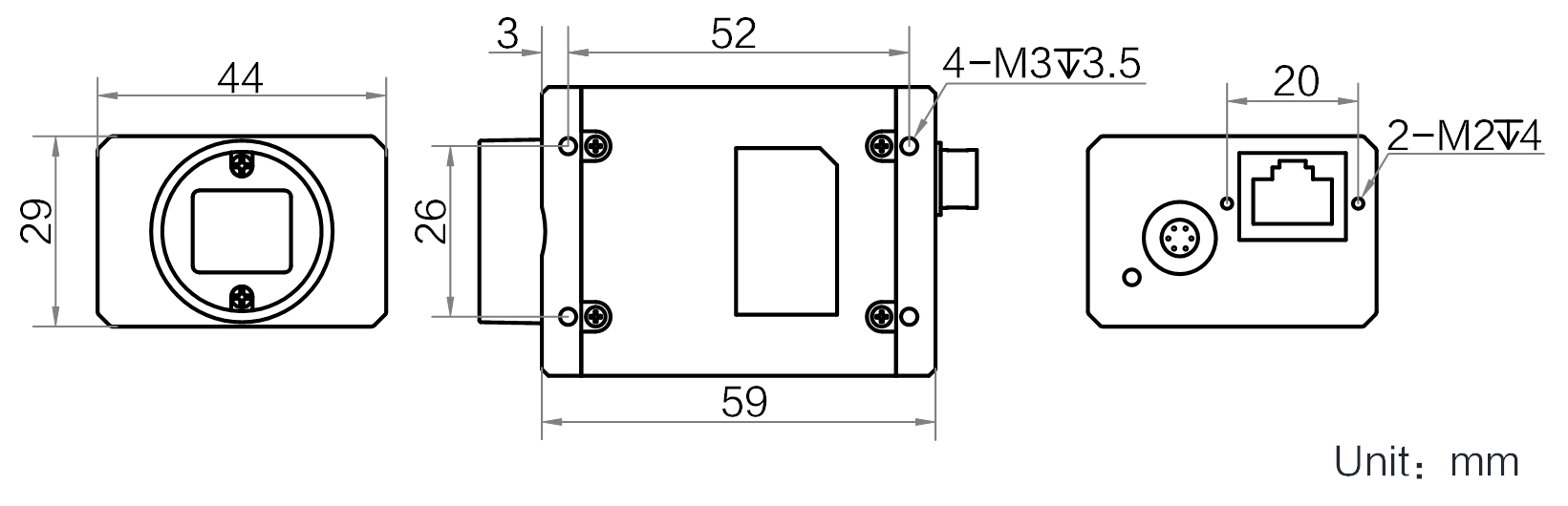

Camera Model List:MV-CH160-60GM Resolution:16MP 4000×4000 Pixel Size:3.2μm Frame Rate:7.25fps Mono8 Sensor:HK
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D

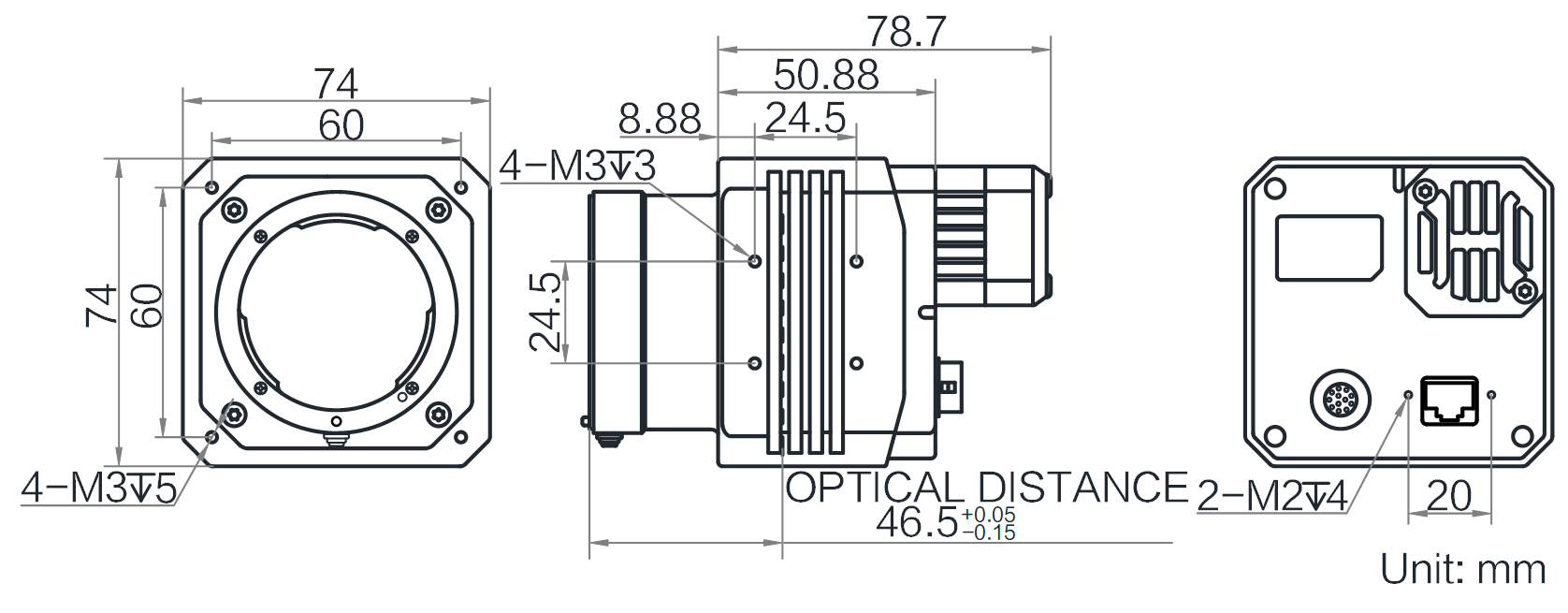

Camera Model List:MV-CH250-21GC-F-NF Resolution:25MP 5120x5120 Pixel Size:4.5μm Frame Rate:4.64fps Bayer RG 8 Sensor:PYTHON25K
23*23
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D

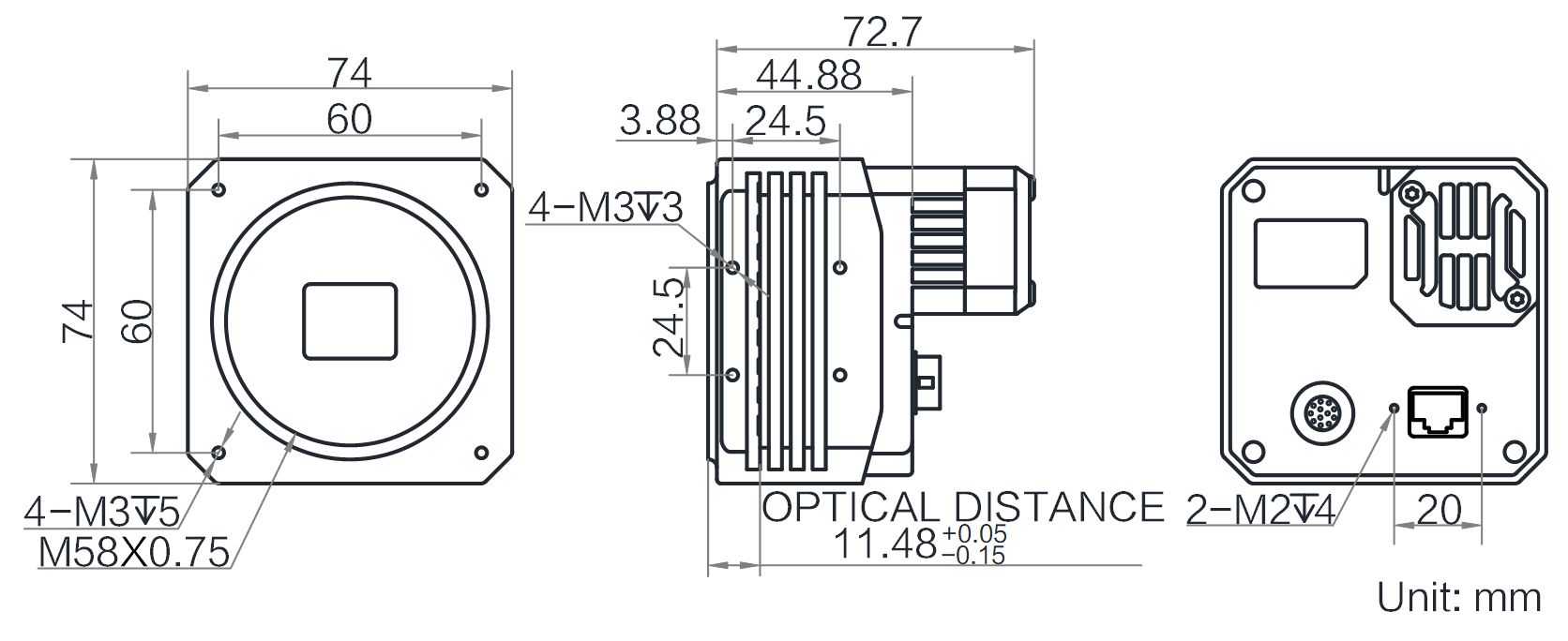

Camera Model List:MV-CH250-21GC-M58S-NF Resolution:25MP 5120x5120 Pixel Size:4.5μm Frame Rate:4.64fps Bayer RG 8 Sensor:PYTHON25K
23*23
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D

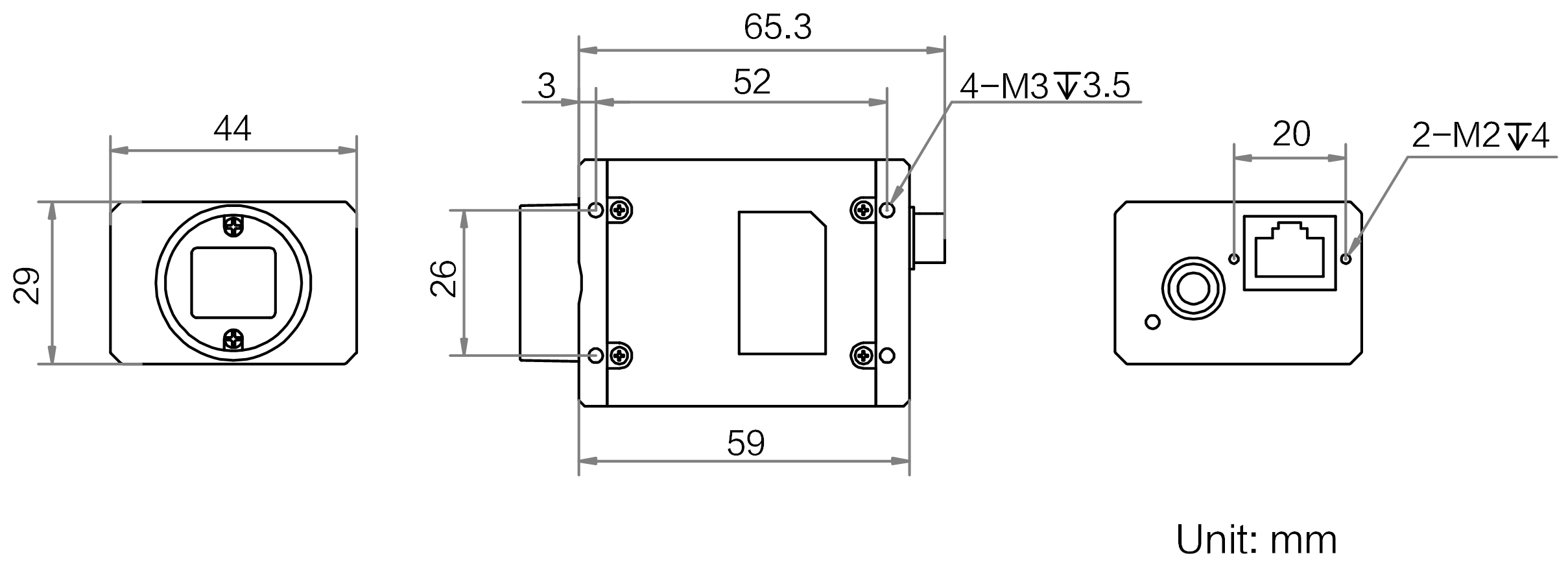

Camera Model List:MV-CH250-90GM Resolution:25MP 5120x5120 Pixel Size:2.5μm Frame Rate:4.5fps Mono8 Sensor:GMAX0505
23*23
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH250-90GC Resolution:25MP 5120x5120 Pixel Size:2.5μm Frame Rate:4.5fps Bayer8 Sensor:GMAX0505
23*23
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH250-90GN Resolution:25MP 5120x5120 Pixel Size:2.5μm Frame Rate:4.5fps Bayer8 Sensor:GMAX0505
1.1"
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH310-10GM-F-NF Resolution:31MP 6464x4852 Pixel Size:3.45μm Frame Rate:3.9fps Mono8 Sensor:IMX342
22.3*16.7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH310-10GM-M58S-NF Resolution:31MP 6464x4852 Pixel Size:3.45μm Frame Rate:3.9fps Mono8 Sensor:IMX342
22.3*16.7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH310-10GC-F-NF Resolution:31MP 6464x4852 Pixel Size:3.45μm Frame Rate:3.9fps Bayer8 Sensor:IMX342
22.3*16.7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH310-10GC-M58S-NF Resolution:31MP 6464x4852 Pixel Size:3.45μm Frame Rate:3.9fps Bayer8 Sensor:IMX342
22.3*16.7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
CH系列USB3.0相機
Camera Model List Resolution Pixel Size Frame Rate Sensor Shutter Mode JPG PDF 3D

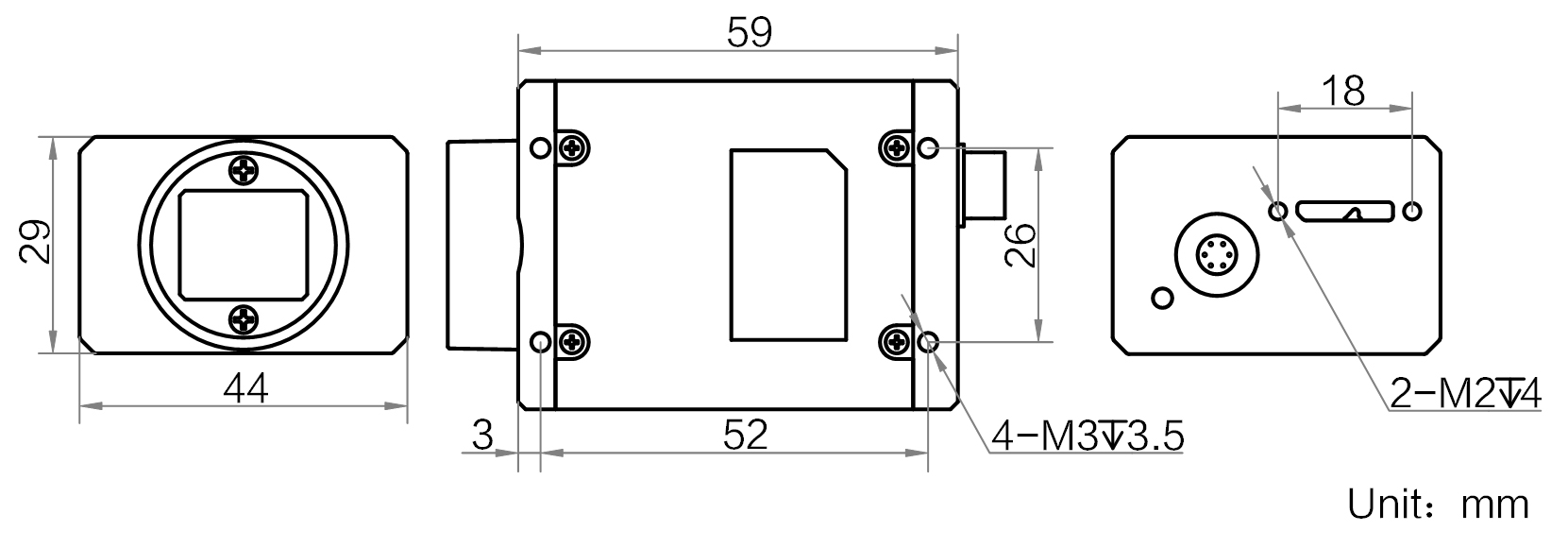

Camera Model List:MV-CH050-10UM Resolution:5MP 2448×2048 Pixel Size:3.45μm Frame Rate:74fps Mono8 Sensor:IMX250
2/3" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH050-10UC Resolution:5MP 2448×2048 Pixel Size:3.45μm Frame Rate:74fps Bayer8 Sensor:IMX250
2/3" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH050-10UP Resolution:5MP 2448×2048 Pixel Size:3.45μm Frame Rate:74.1fps Mono 8 Sensor:IMX250MZR
2/3" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH089-10UM Resolution:8.9MP 4096×2160 Pixel Size:3.45μm Frame Rate:32fps Mono8 Sensor:IMX267
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH089-10UC Resolution:8.9MP 4096×2160 Pixel Size:3.45μm Frame Rate:32fps Bayer8 Sensor:IMX267
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH100-60UM Resolution:10MP 4096×2460 Pixel Size:3.45μm Frame Rate:36fps Mono8 Sensor: 堆栈式BSI
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH100-60UC Resolution:10MP 4096×2460 Pixel Size:3.45μm Frame Rate:36fps Mono8 Sensor: 堆栈式BSI
1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-10UM Resolution:12MP 4096×3000 Pixel Size:3.45μm Frame Rate:23fps Mono8 Sensor:IMX304
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-10UC Resolution:12MP 4096×3000 Pixel Size:3.45μm Frame Rate:23fps Bayer8 Sensor:IMX304
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-11UM Resolution:12MP 4096×3000 Pixel Size:3.45μm Frame Rate:30.3fps Mono8 Sensor:IMX304
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-11UC Resolution:12MP 4096×3000 Pixel Size:3.45μm Frame Rate:30.3fps Bayer RG 8 Sensor:IMX304
1.1" CMOS
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-20UM Resolution:12MP 4096×3072 Pixel Size:3.2μm Frame Rate:28fps Bayer8 Sensor:XGS12000
1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH120-20UC Resolution:12MP 4096×3072 Pixel Size:3.2μm Frame Rate:28fps Bayer RG 8 Sensor:XGS12000
1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH140-60UM Resolution:14MP 4708×2824 Pixel Size:3μm Frame Rate:27fps Mono8 Sensor:堆栈式BSI
1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH250-90UM Resolution:25MP 5120×5120 Pixel Size:2.5μm Frame Rate:14fps Mono8 Sensor:GMAX0505
1.1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH250-90UC Resolution:25MP 5120×5120 Pixel Size:2.5μm Frame Rate:14fps Bayer BG 8 Sensor:GMAX0505
1.1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
Camera Model List:MV-CH250-90UN Resolution:25MP 5120×5120 Pixel Size:2.5μm Frame Rate:14fps Mono8 Sensor:GMAX0505
1.1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D

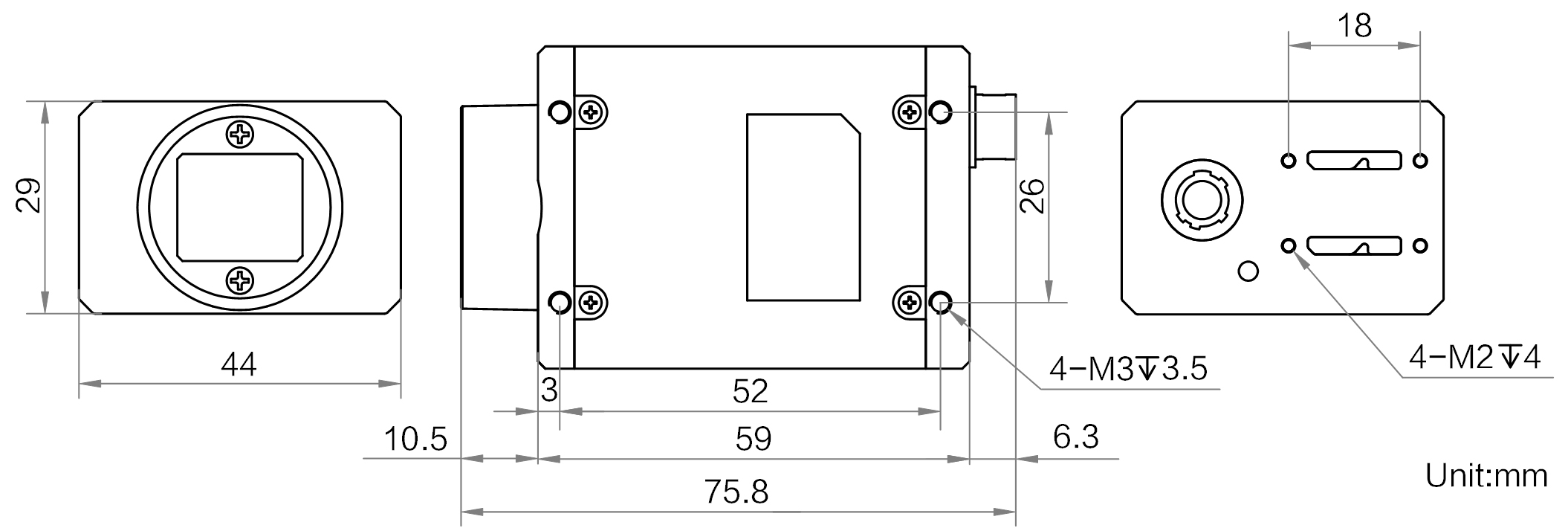

Camera Model List:MV-CH250-90VM Resolution:25MP 5120×5120 Pixel Size:2.5μm Frame Rate:30fps Mono8 Sensor:GMAX0505
1.1" CMOS7
Shutter Mode:Global Shutter JPG:JPG PDFPDF 3D:3D
